Advantages

  • NFC technology is tamper-proof
  • each key has a unique code
  • Key/key switches the mo.lock NFC without contact and the entire vehicle electrical system via the relay
  • Key and mo.lock are not subject to mechanical wear
  • the keys do not need a battery and therefore can not fail
  • No overloading or scorching of contacts possible due to indirect switching via 40A load relay

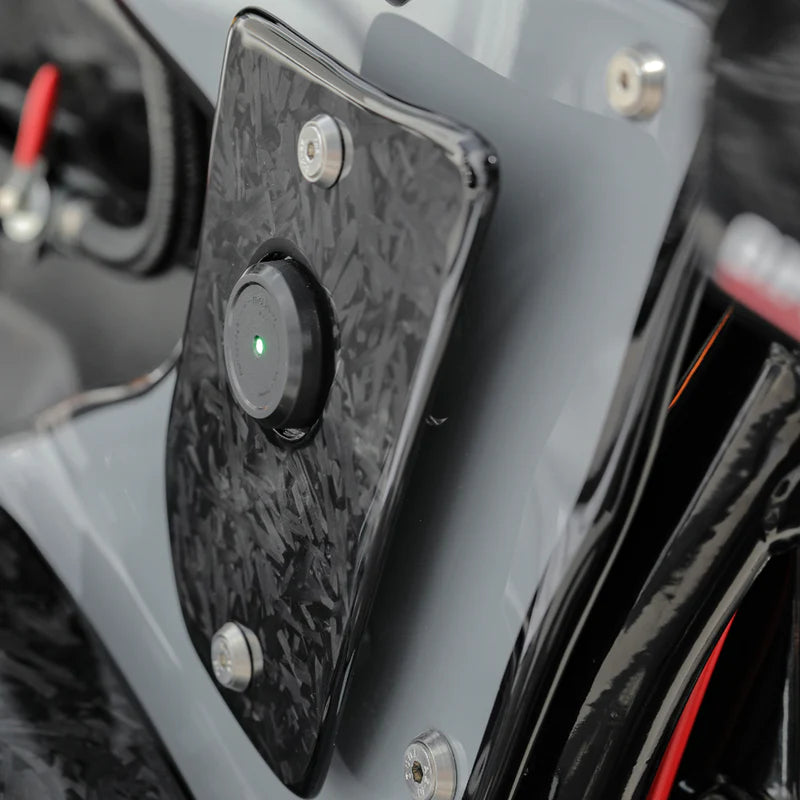

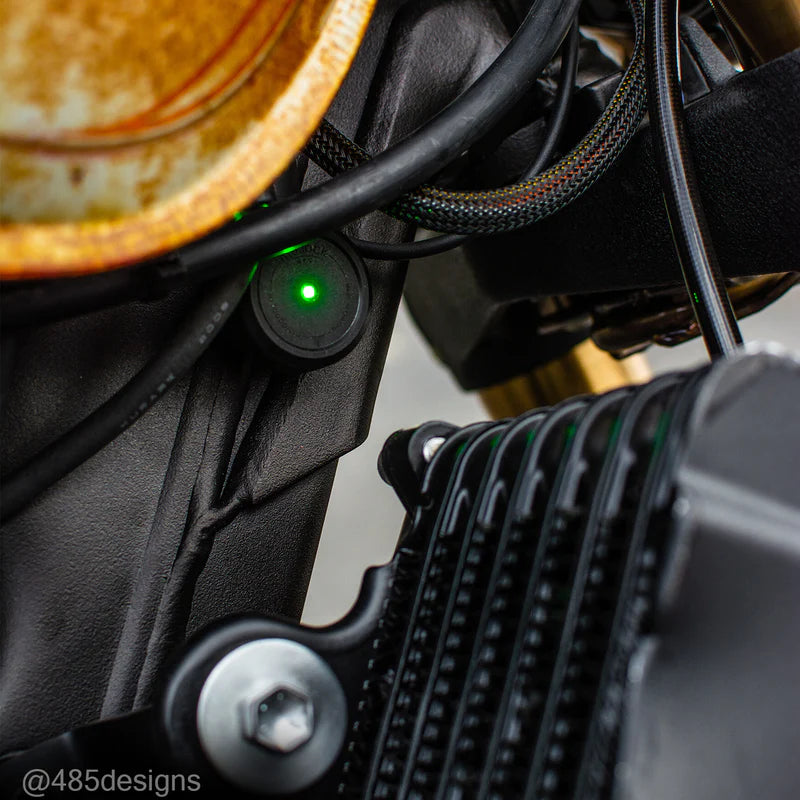

  • the mo.lock NFC is very small and can be mounted hidden in many places
  • the mo.lock NFC is overmolded with a non-flammable thermoset and therefore 100% water and vibration resistant (IP69)
  • Keys are appealingly small (30mm diameter) and light (2gr.)
  • Additional keys can be purchased and programmed at a later date
  • The 40 mm switching distance ensures contactless, convenient switching on and off, but prevents unintentional actuation
  • A colored LED indicates the status of the mo.lock NFC
  • to protect the vehicle battery, the mo.lock NFC automatically reduces the quiescent current in 3 stages when not in use
Technical data
  • Dimensions: 32mm diameter / 12mm depth
  • Weight: 35 g
  • Mounting: M3 thread on rear and bracket with 2 holes
  • Operating voltage: 8 - 18 V
  • Quiescent current consumption: 750µA (after 8 days)
  • Operating temperature: -20° to +80°C

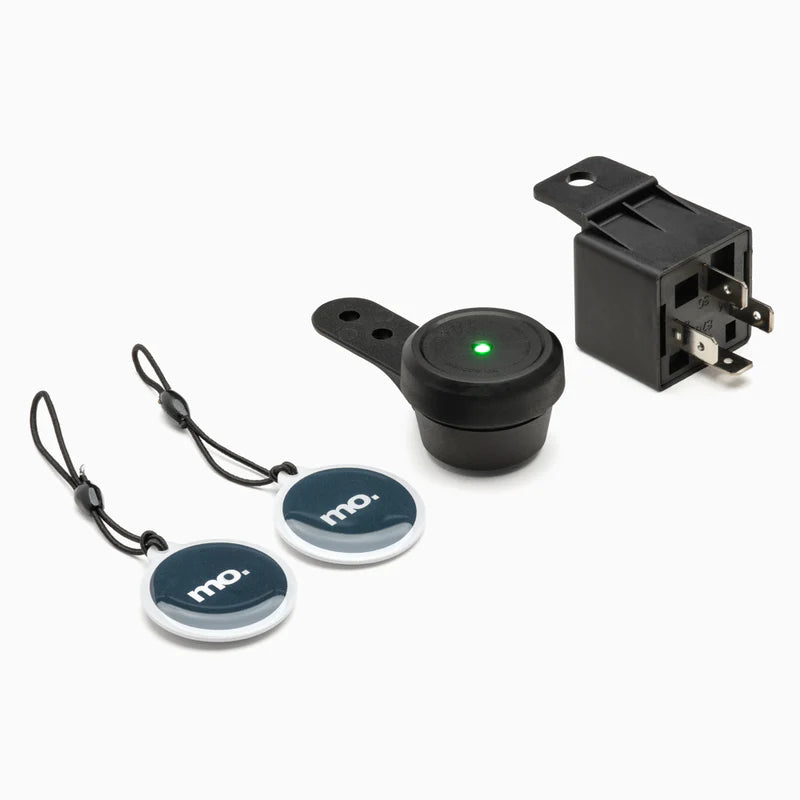

Scope of delivery
  • mo.lock NFC
  • 2 keys
  • Relay 40A incl. blade terminals and insulator sleeves



can be ordered separately in the accessories category:

  • Ready-made mo.lock wiring harness for quick and easy installation
  • Spare key
  • Replacement fastening
Instruction manual

To the instruction manual
