Öhlins NIX 30 Street Cartridge Kit FKS 505
Price: ₹119483
+ ₹21507 (18% GST) = ₹140990 | including shipping

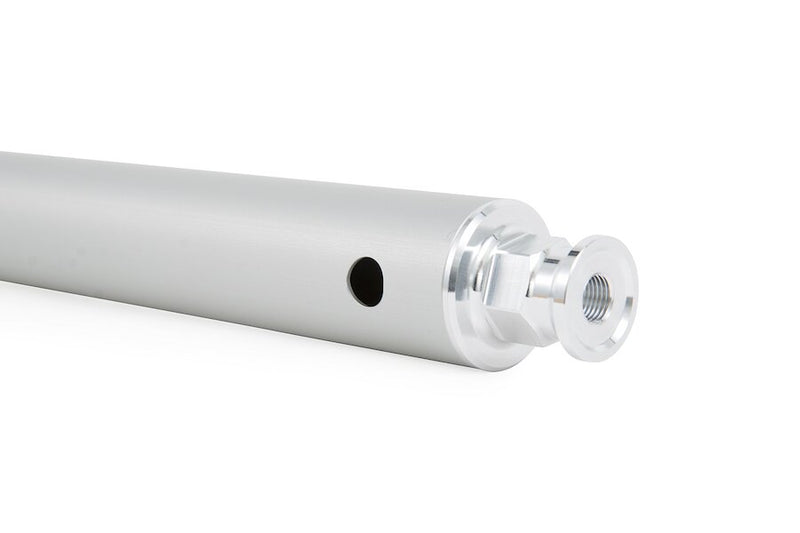

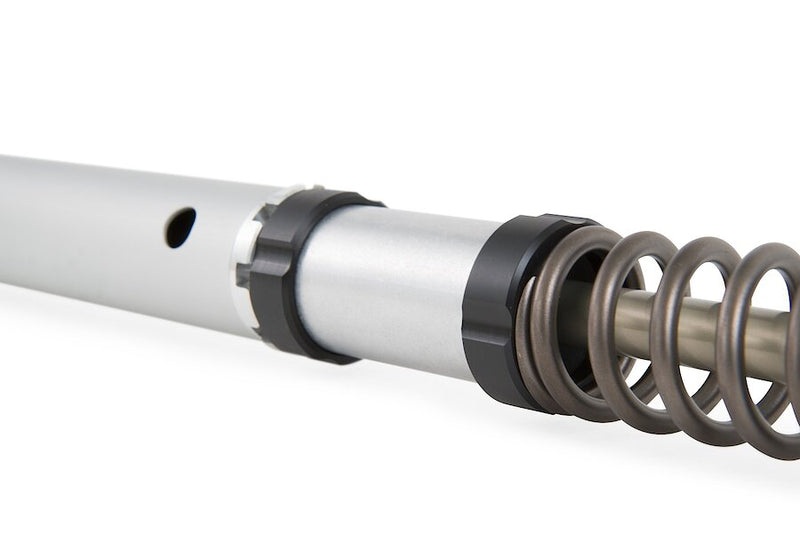

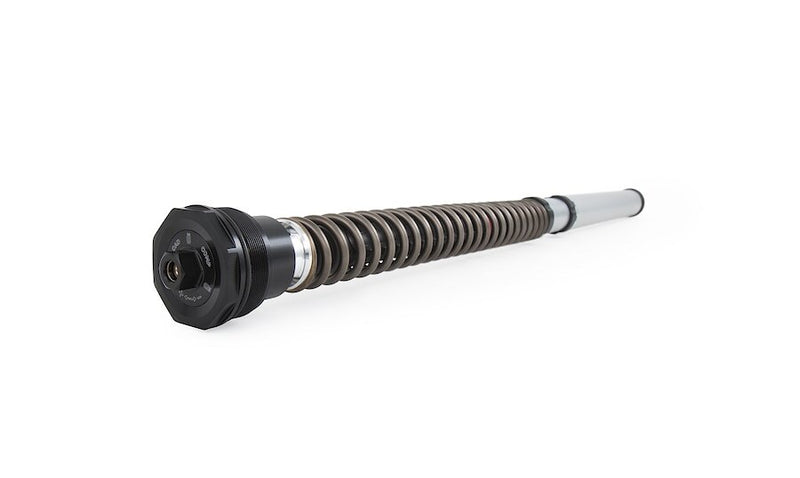

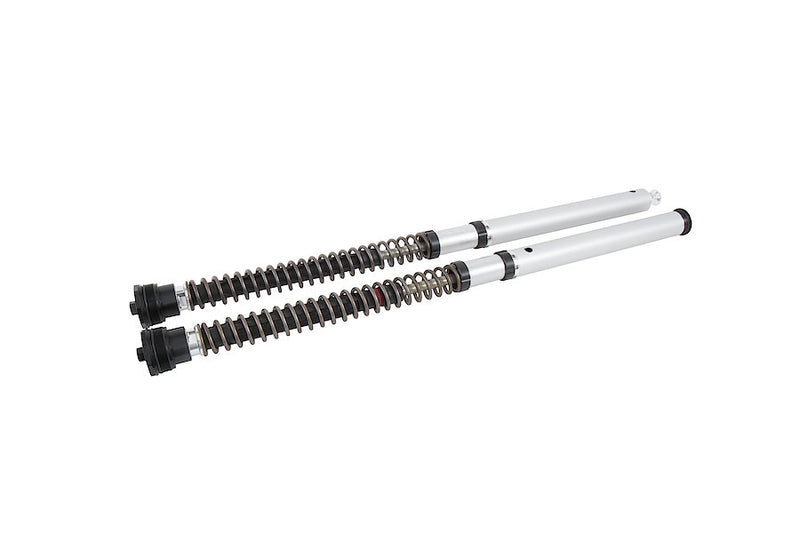

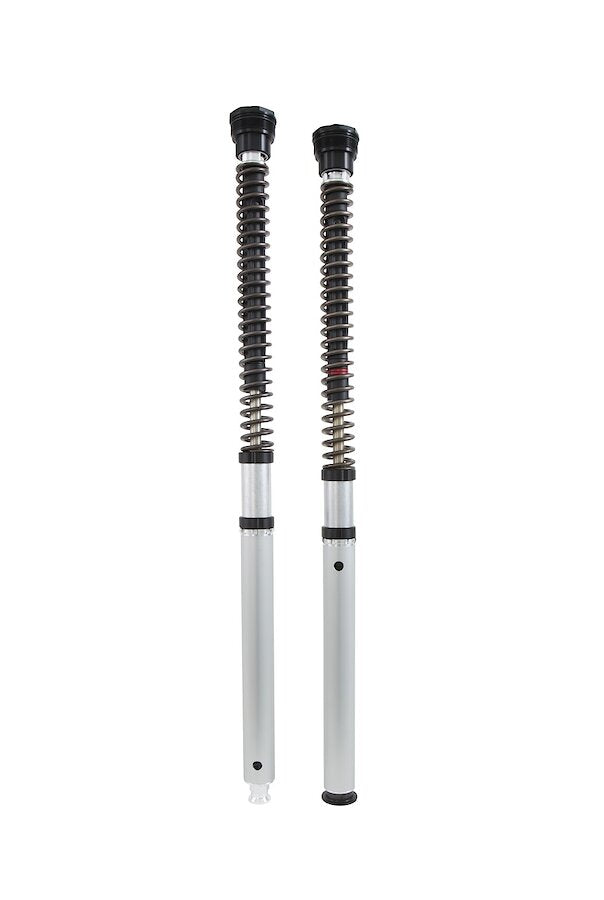

Öhlins NIX 30 Street Cartridge Kit FKS 505

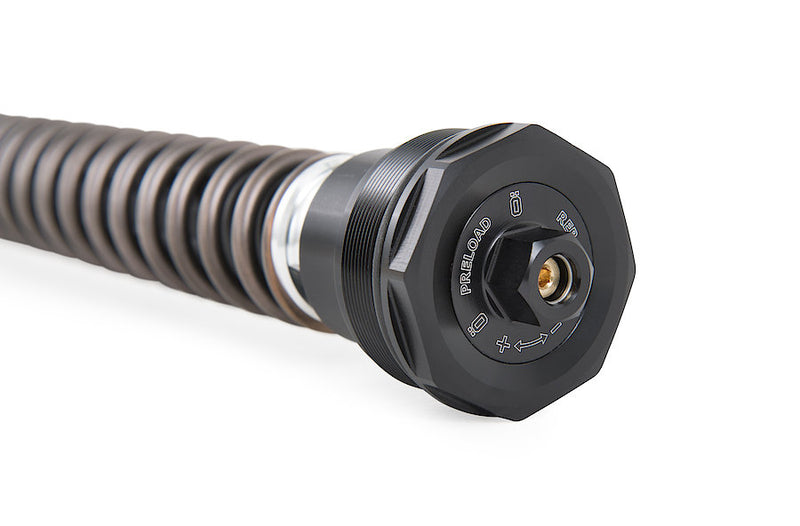

The Öhlins NIX 30 Street cartridge kit features new designed black top caps to give the bike a more subtle look. The “NIX” technology is developed from high level racing such as WSBK to deliver the utmost performance on road as well as on track. It fits bolt on in the standard fork legs and gives you adjustable compression and rebound damping separated in each leg, as well as preload adjustment, all accessible from the black top caps.
Öhlins cartridge systems are designed for installation in the standard fork. The cartridge systems are supplied with or without springs, depending on the article number. Please refer to the respective installation instructions. Please follow our recommendations regarding spring rates and oil in relation to rider's weight and preference listed in the specific cartridge kit's mounting instruction.

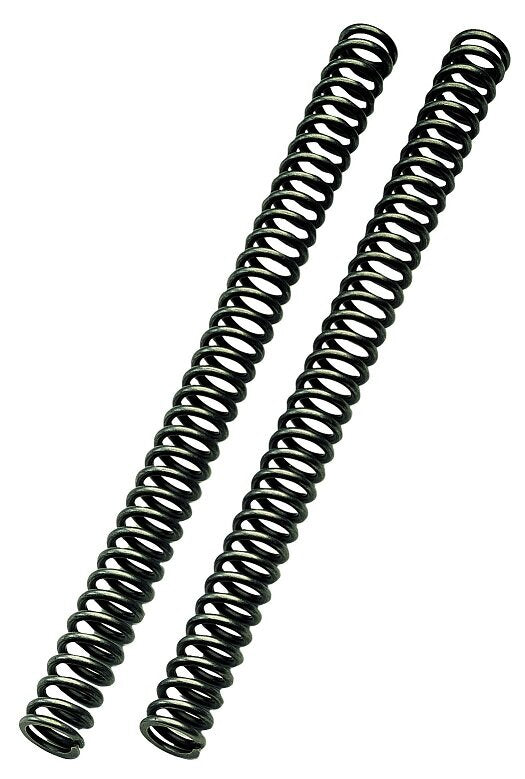

The Öhlins cartridge system fits into the original front fork, springs have to be ordered individually. Please follow our recommendations regarding spring rates and oil in relation to rider's weight and preference listed in the specific cartridge kit's mounting instruction.
Installation Tools
For a correct installation of the cartridge kit into the standard front fork the following tools are required. These tools are not included and need to be purchased in addition at the Öhlins online shop.
- Tool pull up top-out spring M12, part no. 01765-03
- Tool cylindertube cap, part no. 01797-07
Additional Consumables
Various operating materials may be required for the professional installation of the cartridge kit. These are not included in the scope of delivery and can also be ordered via the Öhlins online shop. Please refer to the installation instructions for the respective product.
- Red grease, 100 g, part no. 00146-01
- Grease Statoil CaH 92, 100 g, part no. 00159-02
- Loctite 2400, 50 ml, part no. 01791-25
- Loctite 2700, 50 ml, part no. 01791-27
Note
Öhlins is represented by MotoPoto LLP in India and provide technical support in India. We therefore strongly recommend having the cartridge kit installed by MotoPoto LLP - authorised service center for Ohlins in India.
Fits the following vehicles
-
BMW R nineT, 2017 – 2020
- ABE (Germany)
-
BMW R nineT, 2021 – 2023
- ABE (Germany)
Part number
FKS 505, 08790-xx
Type Code
NIX30
30
Piston diameter: 30 mm
Data
| Length: | 691 mm |
|---|---|
| Position: | front |
| Spring series: | 08790-Serie |

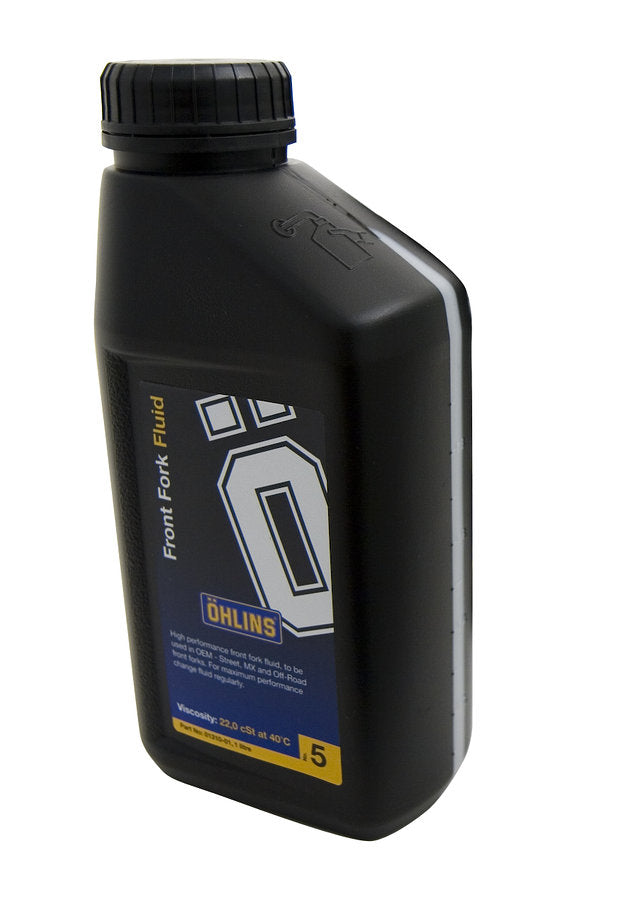

| Recommended oil: | 01309-01 |
| Oil level mm: | 130mm |
| Packaging unit: | pair |
