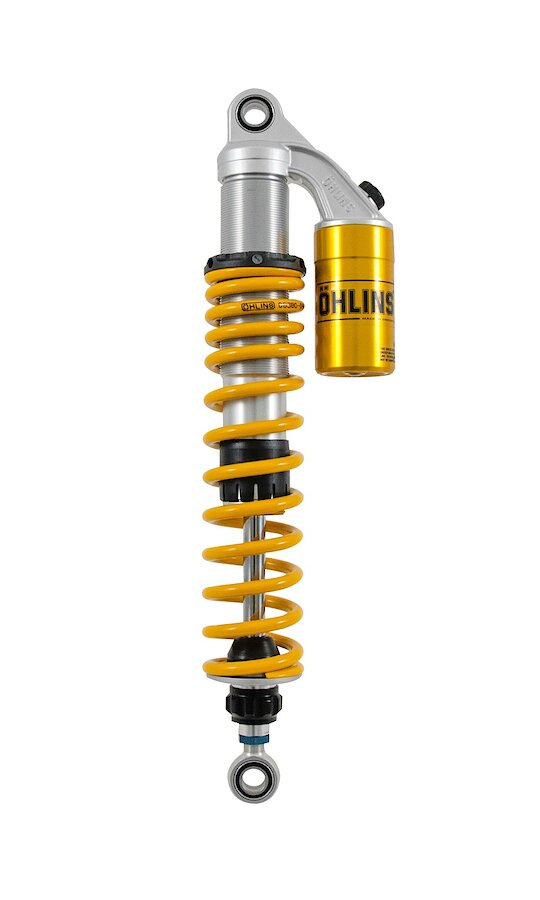

Öhlins STX 36 Supersport Shock Absorber KA 745
Price: ₹116093
+ ₹20897 (18% GST) = ₹136990 | including shipping
Part number: KA 745
Type Code: S36PR1C1L
- S: Single tube
- 36: Piston diameter: 36 mm
- P: High pressure gas type of shock absorber with external “piggy back” reservoir.
- R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
- C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir.
- L: Adjustable length.
Technical data
| Length: | 320mm +6-0 mm |
|---|---|
| Stroke: | 66 mm |
| Rate N/mm: | 105 N/mm |
| Position: | rear |
| Mounted spring: | 60293-36 |
| Spring series: | 60293-xx |
| Packaging unit: | pieces |
Notes
WSSP300 race setting, optional stiffer springs 60293-41 (115 N/mm) and 60293-44 (120 N/mm) available.
Fits for vehicles
-
Kawasaki Ninja 400 (2018 – 2023)
- Without TUEV certificate (Germany)
- For Racing use,WSS 300 Spec
Download
- Mounting Instruction Öhlins Motorcycle KA 745 (English) (1.588,90 KB)
- Owner´s Manual Öhlins Motorcycle Road & Track (English) (2.365,08 KB)
